Consew

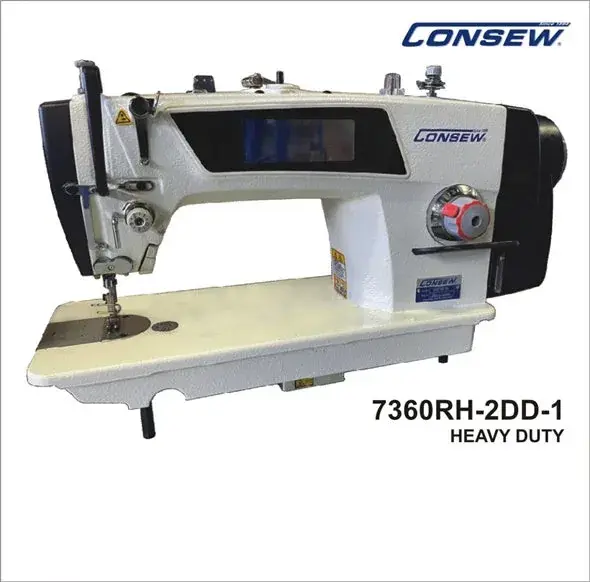

Consew 7360RH-2DD-1
The 7360RH-2DD-1 is the heavier duty version of this machine. High Speed (*5000 spm,) Single Needle, Drop Feed, Lockstitch Machine, Servo Motor Direct To Top Shaft, Needle Positioning,
Product features
The 7360RH-2DD-1 is the heavier duty version of this machine. High Speed (*5000 spm,) Single Needle, Drop Feed, Lockstitch Machine, Servo Motor Direct To Top Shaft, Needle Positioning,
Available in 110 v single phase - Inquire on special order for other voltages
Applications
Suitable for jeans, shirts, sportswear, and any light to medium weight fabric
Features
Direct drive to top shaft for energy savings and quiet operation
Low vibration gear transmission
Built-in bobbin winder
Side load bobbin for easy access
Needle positioning with a convenient button to position needle up/down
Stopper pin with a lock pin to avoid unequal stitches caused by feed regulator vibration
Advanced oiling system (semi-dry)
Needle bar designed to require minimal lubrication
Safety switch keeps machine from operating when in a non-upright position
Variable speed control
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Drop Feed |
| Workspace | Standard Workspace |
| Speed, Max (S.P.M.) | 5000 |
| Motor Type | Direct Drive |
| Clearance Under Presser Foot | 1/4" (6mm), 1/4" (6mm) |
| Stitch Length | 6 s.p.i. (4 mm) |
| Work Space | 10" (258mm) |
| Needle | 16 x 257 |
| Bed Size | 7" x 18 7/8" (177mm x 477mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 1-7/32" (31 mm) |
| Electric | 220v single phase |
Catalogue
Consew does not publish a separate leaflet for the Consew 7360RH-2DD-1. Their catalogues cover the whole range and open in a new tab.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
