Consew P1255RB-1

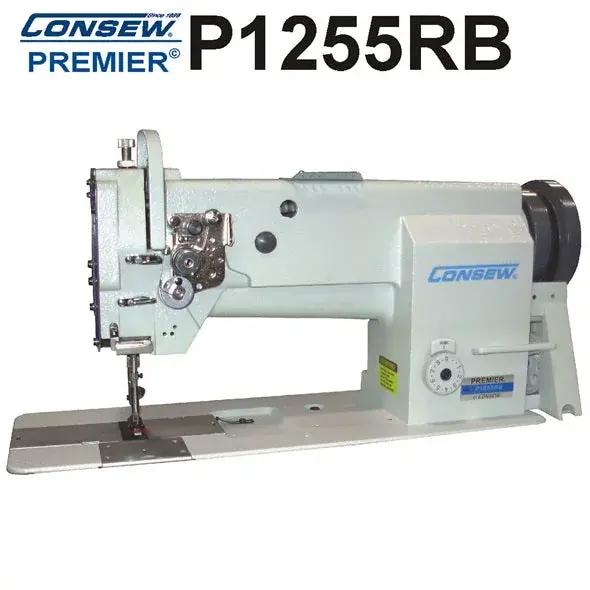

The Consew P1255RB-1 is a versatile drop-feed, needle-feed walking foot lockstitch machine engineered for consistent, high-quality stitching on a variety of materials.
Product features
1 / 3
The Consew P1255RB-1 is a versatile drop-feed, needle-feed walking foot lockstitch machine engineered for consistent, high-quality stitching on a variety of materials. Featuring a large vertical-axis, automatically oiled hook with an adjustable oil pump system and upper oil sight glass, this machine ensures smooth operation and reliable lubrication. Its barrel-type locking stitch regulator, reverse function, and safety clutch provide precision control and added protection during use.
Features

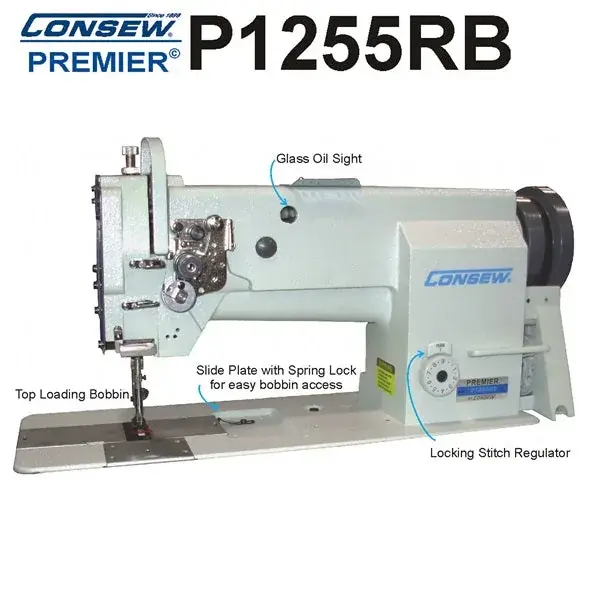

Large Vertical Axis Automatically Oiled Hook
Oil Pump System with Adjustable Oil Flow
Upper Oil Glass Sight
Barrel-type, Locking Stitch Regulator
Reverse
Large Top-Loaded Bobbin
Safety Clutch

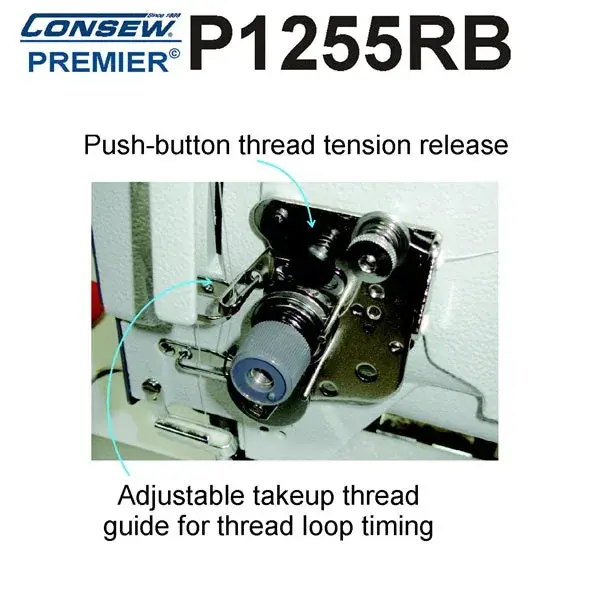

Quick Tension Release
Locking Slide Plate for easy bobbin access
Adjustable Take-Up Thread Guide for thread loop timing
Specifications
| Speed, Max. (S.P.M.) | 2600 *Speed depends on thread, material, and operation |
|---|---|
| Presser Foot Lift | By Hand- 5/16" (8 mm) / By Knee- 33/64" (13 mm) |
| Needle Bar Stroke | 1-27/64" (36 mm) |
| Stitch Length, Max | 2.8 s.p.i. (9 mm) |
| Work Space | 9-7/8” x 3-15/16" (250 x 100 mm) |
| Needle | 135 x 17 |
| Pre-wound Bobbin | U or S |
Catalogue
The Consew P1255RB-1 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Data sheets, photos, videos and specifications: Consew.
