Consew

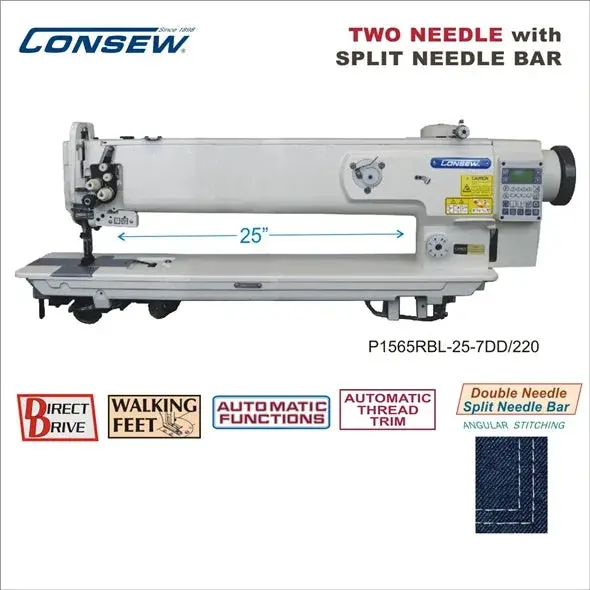

Consew P1565RBL-25-7DD/220

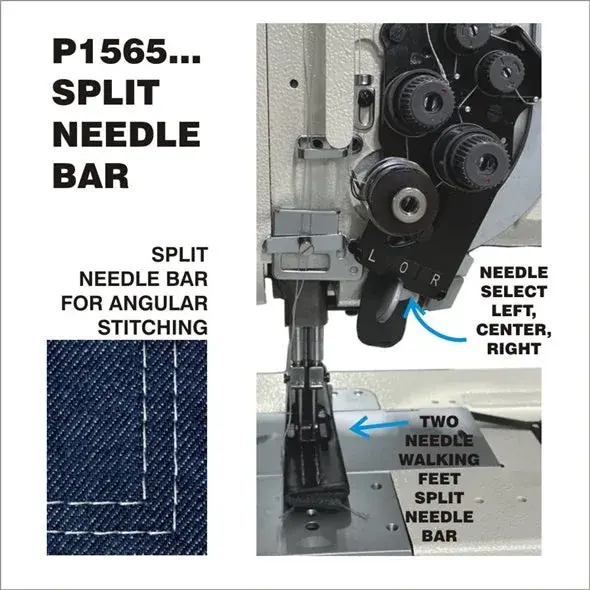

Two-Needle Machine with Split Needle Bar for Angular Stitching. High Speed, Direct Drive, Walking Foot, Lockstitch Machine.
Product features
1 / 3
Two-Needle Machine with Split Needle Bar for Angular Stitching. High Speed, Direct Drive, Walking Foot, Lockstitch Machine.
Comes in 14" 18" and 25" workspace (see catalog sheet).

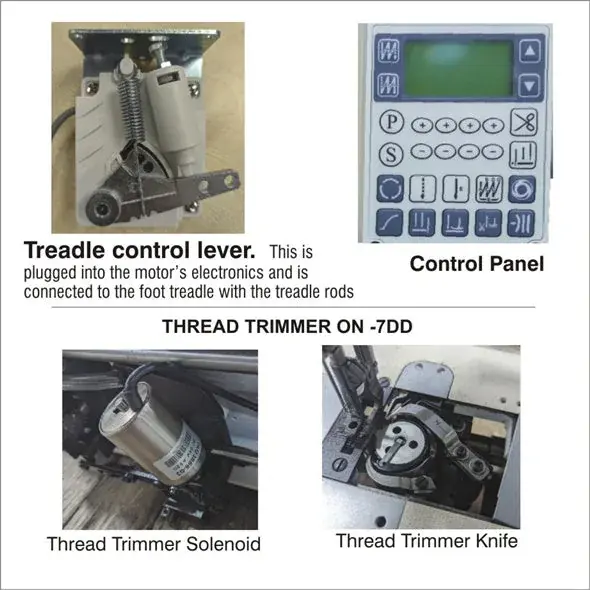

This 25" Long-Arm version comes with full auto functions (-7DD has automatic thread trim)
( also available: -DD without automatic thread trim)
Currently Available in 220VAC Version ONLY.
Specifications
| Speed, Maximum | 2000 - 2500 spm (Speed depends on thread, material, and operation) |
|---|---|
| Clearance Under Foot | 9/16" (14mm) |
| Stitch Length | Max. 9mm (Adjustment by dial) |
| Presser Foot Lift | By Hand - 9 mm / By Knee - 16mm |
| Lubrication | Semi-Automatic |
| Bobbin | U or S |
| Needle | 135 x 17 (DPX17) |
| Needle Gauges | 1/4” to 1” (Custom gauges also available) |
| Power | 220 VAC |
| Number of Needles | 2 needles |
| Workspace | Long Arm |
| Standard or Full Function | Computerized Functions |
| Speed, Max (S.P.M.) | 2000 - 2500 spm |
| Motor Type | Direct Drive Internal |
| Clearance Under Presser Foot | Hand - 9mm, Knee - 16mm |
| Work Space | 25" |
| Available Needle Spacings | 1/4” to 1” |
| Electric | 220 VAC |
Catalogue
The Consew P1565RBL-25-7DD/220 documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue · Guía rápida (PDF)Open the catalogue (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
