Consew 7360RBL-18-7DD

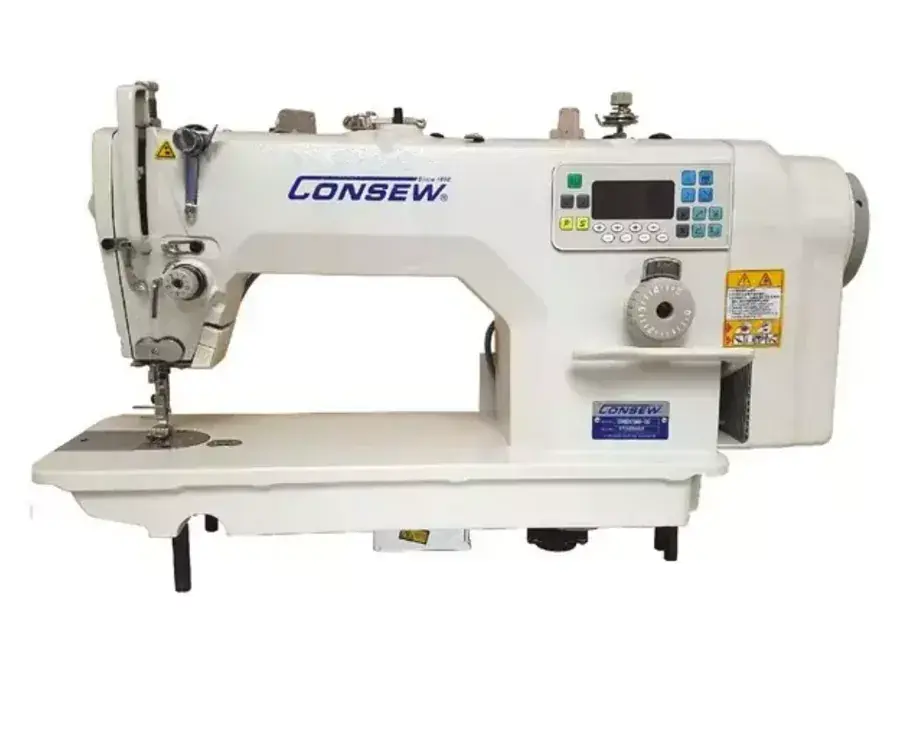

The Consew Model 7360RBL-18-7DD is an industrial-grade, high-speed, single-needle, drop-feed lockstitch sewing machine.
Product features
The Consew Model 7360RBL-18-7DD is an industrial-grade, high-speed, single-needle, drop-feed lockstitch sewing machine. Featuring an 18-inch long arm and a direct-drive servo motor, it offers an extended workspace and enhanced control for handling larger materials. Equipped with automatic functions, including thread trimming and reverse stitching, this machine ensures efficient and reliable performance across various sewing tasks.
Specifications
| Maximum Sewing Speed | 5,000 stitches per minute |
|---|---|
| Needle Bar Stroke | 31.8mm |
| Clearance Under Presser Foot | 6mm by hand, 13mm by knee |
| Needle System | Uses DBx1 needles |
| Workspace | 18 inches (457mm) |
| Stitch Length | Up to 6.2mm |
| Bed Size | 7 inches x 18 7/8 inches (177mm x 477mm) |
| Hook Type | Horizontal axis rotary hook |
Catalogue
The Consew 7360RBL-18-7DD documents Consew publishes, on their own site. They open in a new tab.
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
