Consew

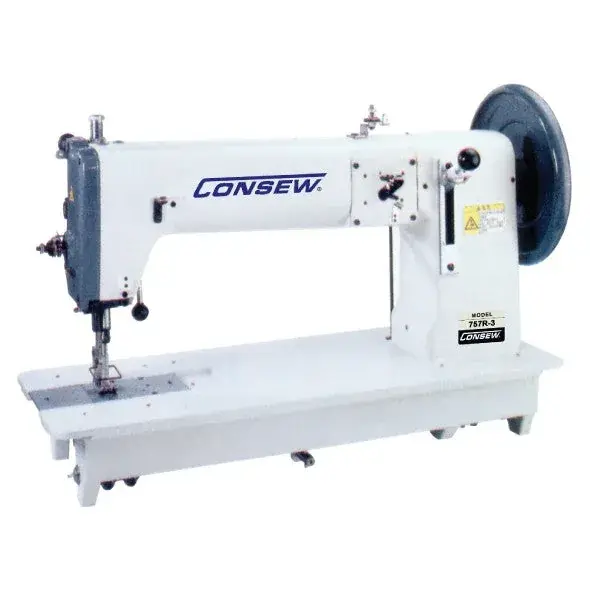

Consew 757R
Extra Heavy Duty, Long Arm, Single Needle, Lockstitch Machine
Product features
Extra Heavy Duty, Long Arm, Single Needle, Lockstitch Machine
With: Large Oscillating Shuttle Hook, Reverse Feed, Built-In Bobbin Winder, Cam Take-Up Lever, Heavy Balance Wheel, 15 3/4" Work Space, 25.4mm Extra High Foot Lift
Specifications
| Number of Needles | 1 (Single) |
|---|---|
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 1200 |
| Stitch Length | 2 1/2 s.p.i. (10mm) |
| Work Space | 15 3/4" (400mm) |
| Needle | 7 x 3 |
| Bobbin | Metal 28092 Prewound 33 |
| Bed Size | 26" 9 7/8" (660mm x 251mm) |
| Stitch Type | 301 |
| Needle Bar Stroke | 2 13/64" (56mm) |
| Hook | 28091C |
| Presser Lift | 1" (25.4mm) |
Catalogue
The Consew 757R documents Consew publishes, on their own site. They open in a new tab.
Open the catalogue (PDF)Open the instruction manual (PDF)Open the parts book (PDF)
And the catalogues Consew publishes for their whole range.
The file is published and updated by the manufacturer; it is not copied here, so nobody downloads an outdated version.
Product information, photographs and specifications: Consew. No prices or stock here: ask us and we will get back to you.
